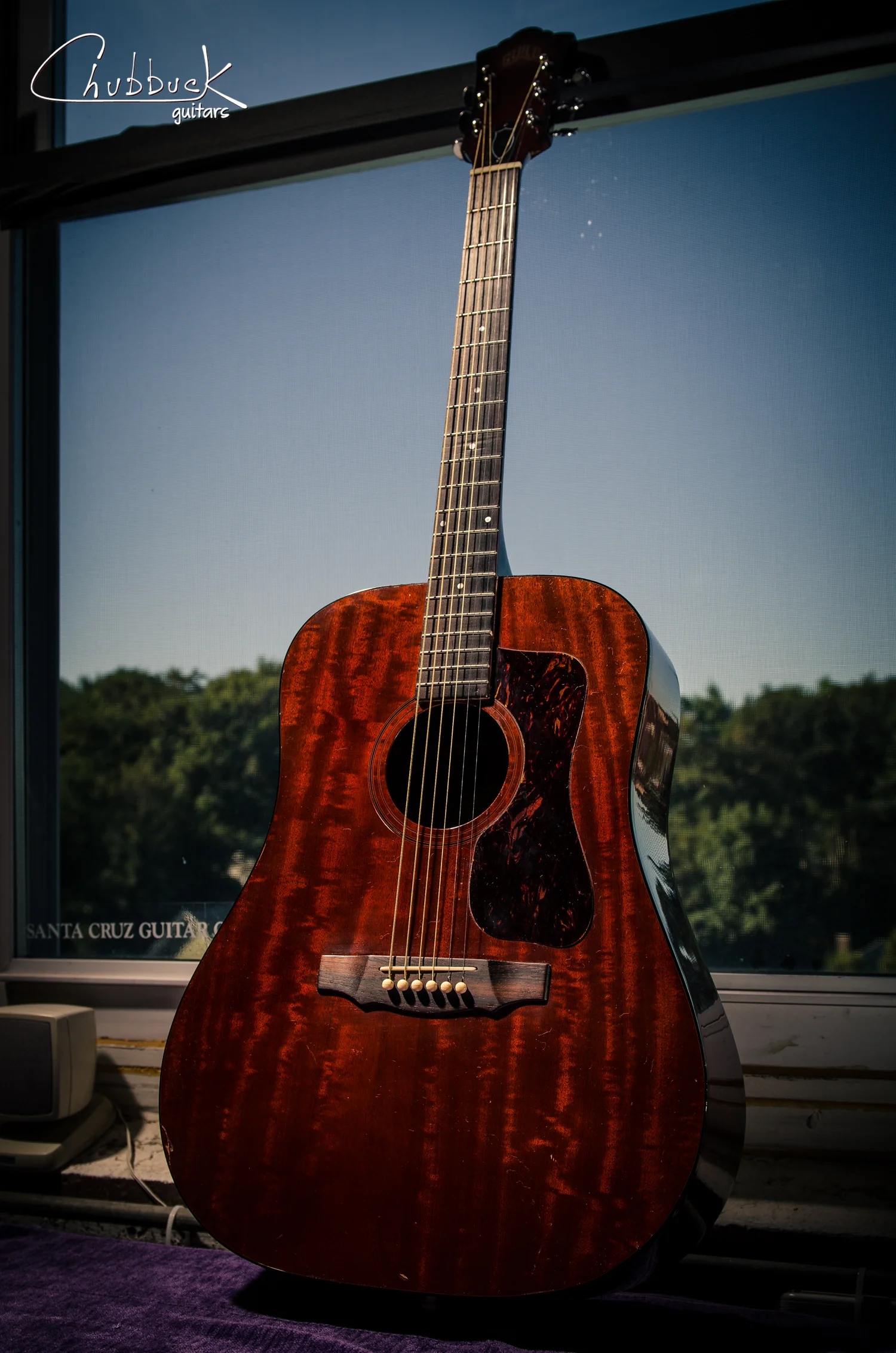

Shipping Damage & Bridge Re-glue :: 1971 Guild D25 Brown [4.2 lbs]
An all-mahogany Guild dreadnought that came in with significant shipping damage on the bass side. The side cracks were glued and the finish repaired to help hide the damage. We also found that the bridge was lifting and cracked through the pin holes, so it was removed, repaired and re-glued.

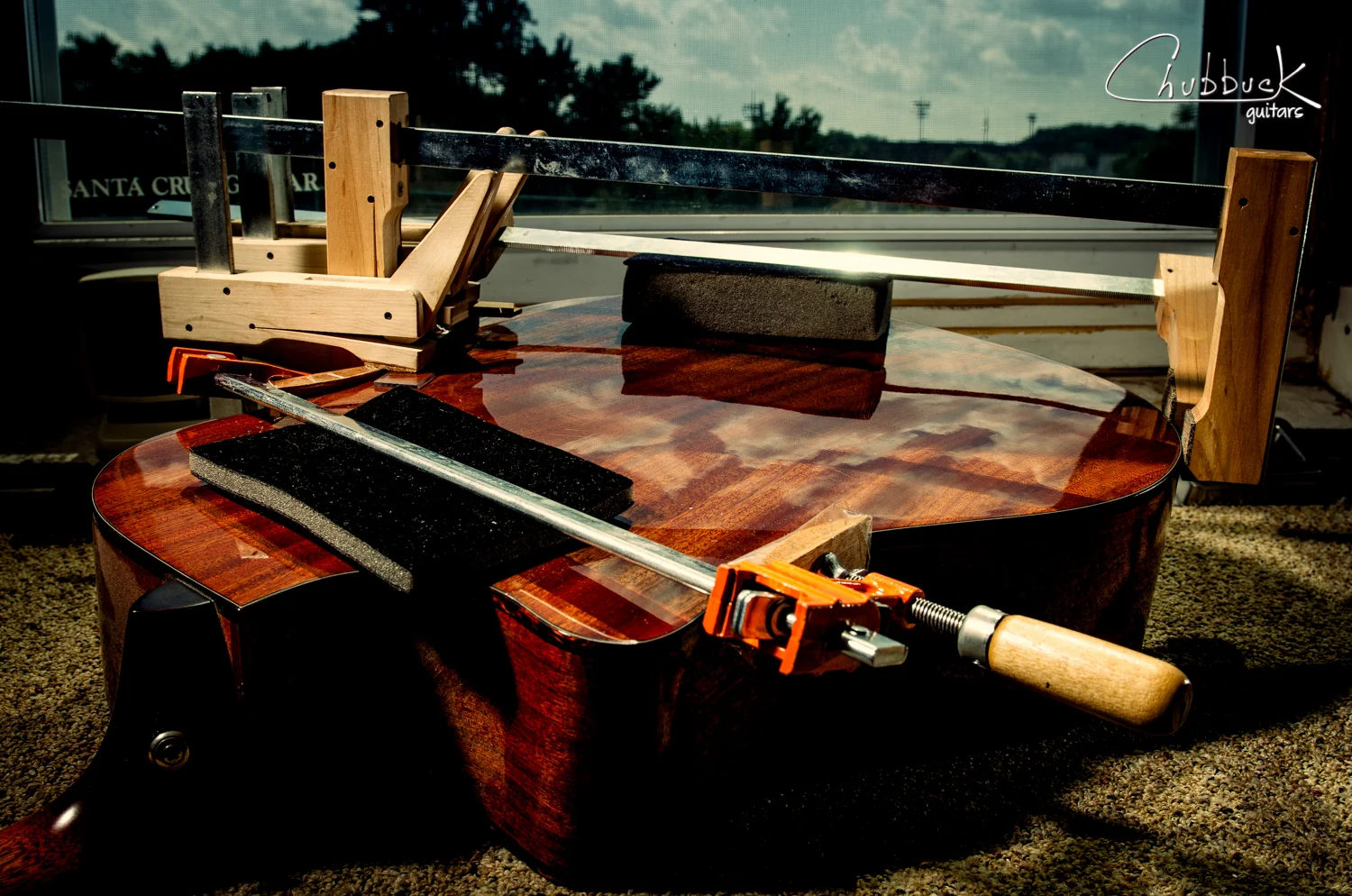

Blown Up Sides :: Breedlove AD25/SM
This family heirloom was damaged on an international flight that crushed the guitar across the lower bout. The sides are broken free from the back through the linings in two places. The back also has multiple loose braces and cracks that will be addressed once the sides are re-secured. Part of the damage can be seen below.

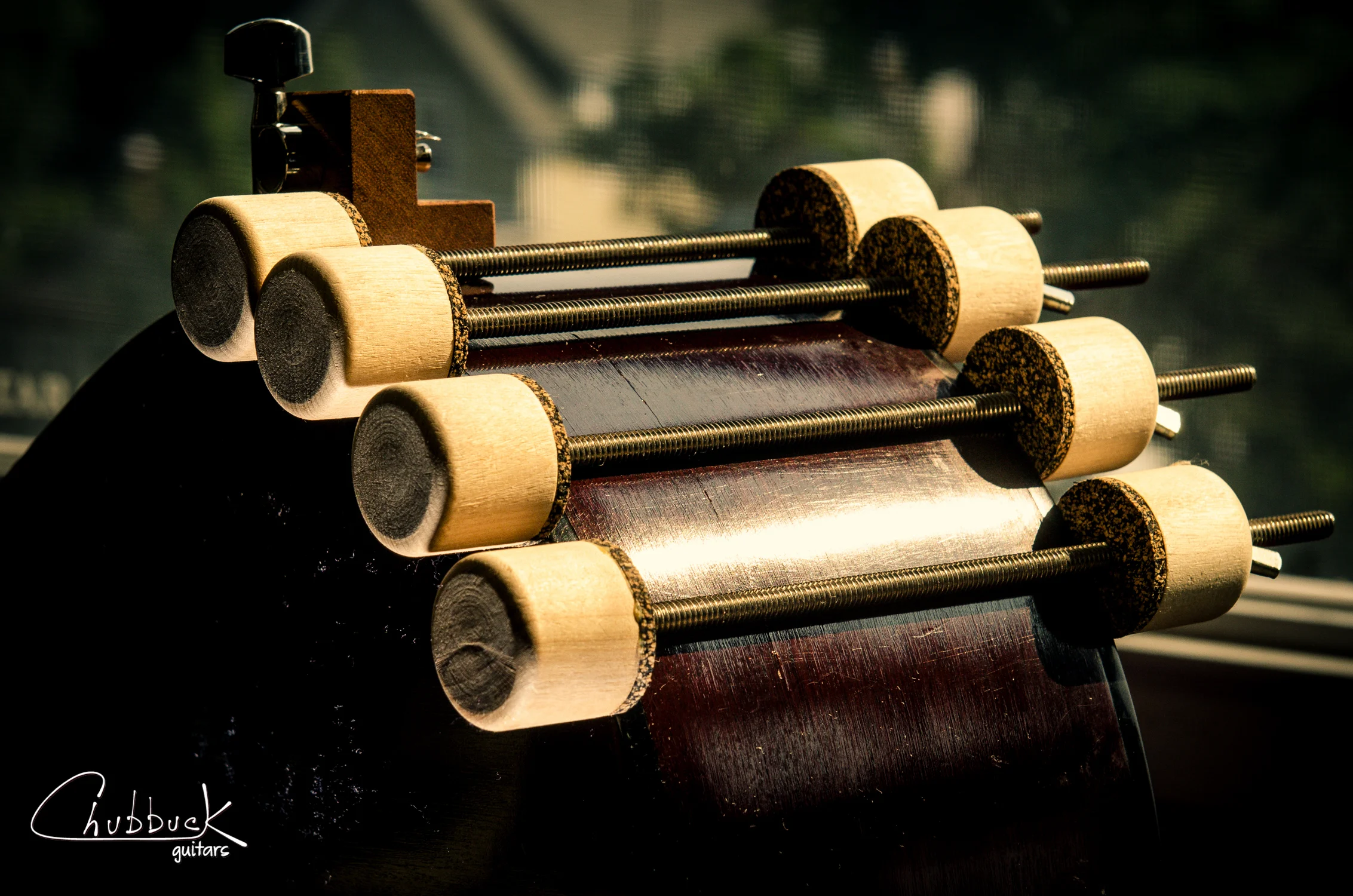

Pulling dents & closing cracks :: 1971 Guild D25M
This side crack was damaged during shipping (shown here). Here is a dent that is being pulled shut with a guitar string, a cleat puller and a mahogany cleat inside the guitar. The spool clamps are closing the remaining crack. Next up will be installing a few more cleats on this crack, then addressing a couple other side cracks.
Setting a cleat with a guitar string :: 1969 Guild Mark III
Now that the neck and bridge are reset, I'm moving onto a hairline side crack. Here I'm using an unwound guitar string along with a cleat pulling jig to both align the crack and set a reinforcement cleat inside. Note that the string's ball end is clipped off and retied to avoid the windings as we want to keep the hole through the side as small as possible (0.008" in this case).
Next up will be to touch up the finish around this crack, make a new saddle and install an Anthem LR Baggs pickup.
Removable side repair :: 1999 Luthier Music Corp TRVL01 Travel Guitar [2.1 lbs]
This was an interesting project that made me feel more like a boat builder than a guitar guy. The sides on this travel classical are removable and over time the tabs that fit into the body had become damaged and previously repaired. One of the tabs was even cut off and super-glue-lap-joined to the side. All of the tabs needed to be repaired, so each tab was epoxied and wrapped with fiberglass and mahogany veneer on each side. I used InstaMorph (moldable plastic pellets) to make inner and outer molds for each tab (eight molds in total) to maintain the shape during glue-up. The lap-joined tab was removed and notched into the side before reinforcing. After cleaning up and fitting each tab, the repairs were sealed with a light coat of shellac and waxed. Many, many hours on this seemingly simple project.
