A nice little Les Paul Studio in for a bone new nut and some switching issues. The toggle switch had been replaced and the solder connections were rather poor. This style switch is designed to break the connection as opposed to making a connection. The pickups would cut in and out and there was no neck-only position. The neck position was not properly kicking away the bridge pickup connection so the contacts needed to be physically adjusted to allow the neck-only pickup.
A local player for a funk band picked up this made in Japan Strat years ago and loves how it plays, but not so much on how it sounds. He found the original pickups to be lacking output (all pickups 6.0k) so he brought it by the shop to install new guts under the pickgaurd. The new pickups he supplied are GFS 1963 Strat Texas wound pickups with their outputs reading 6.1k (neck), 6.5k (middle - RW/RP) and 8.6k in the bridge. The middle pickup's "RW/RP" stands for "reverse wound / reverse polarity" which means that it is hum cancelling when combined with the neck or bridge pickup (positions 2 & 4 on the 5-way switch). He also supplied CTS pots, a 0.022 µf Orange Drop tone cap, new 5-way switch and Switchcraft output jack.
The first day back from the long weekend rolls on. Jumping head first into the butchered 1970s Gibson EB-3 mess. Doing my best to get this back as close to stock as you can while dealing with an added 3rd P pickup. I also decided to relocate the previously moved rotary switch back home and add back original controls, so some drilling out of plugs was required. A Curtis Novak choke is going in (original missing), along with Emerson Custom CTS pots. What a mess!
Follow along with this #eb3mystery project here.

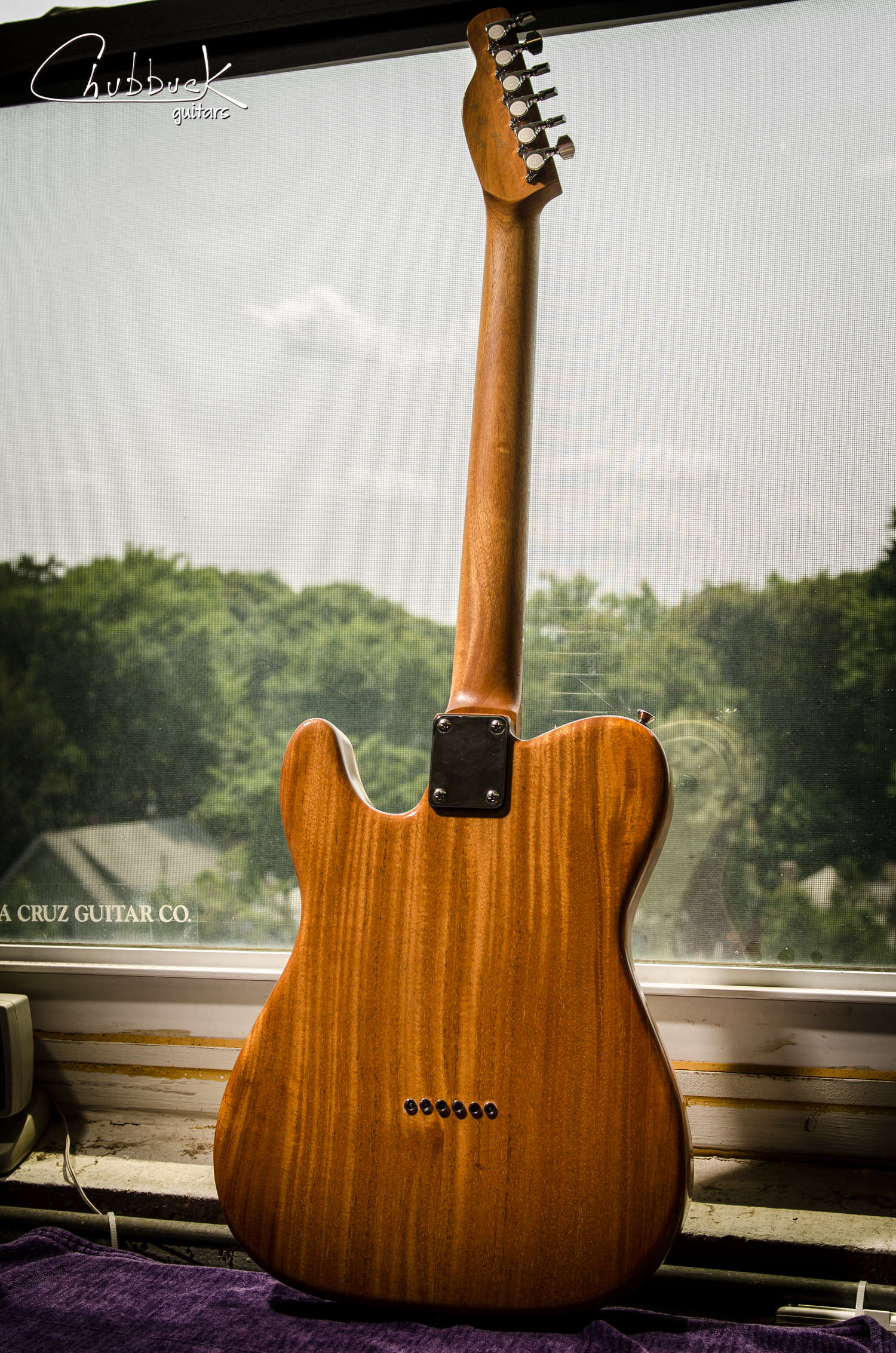

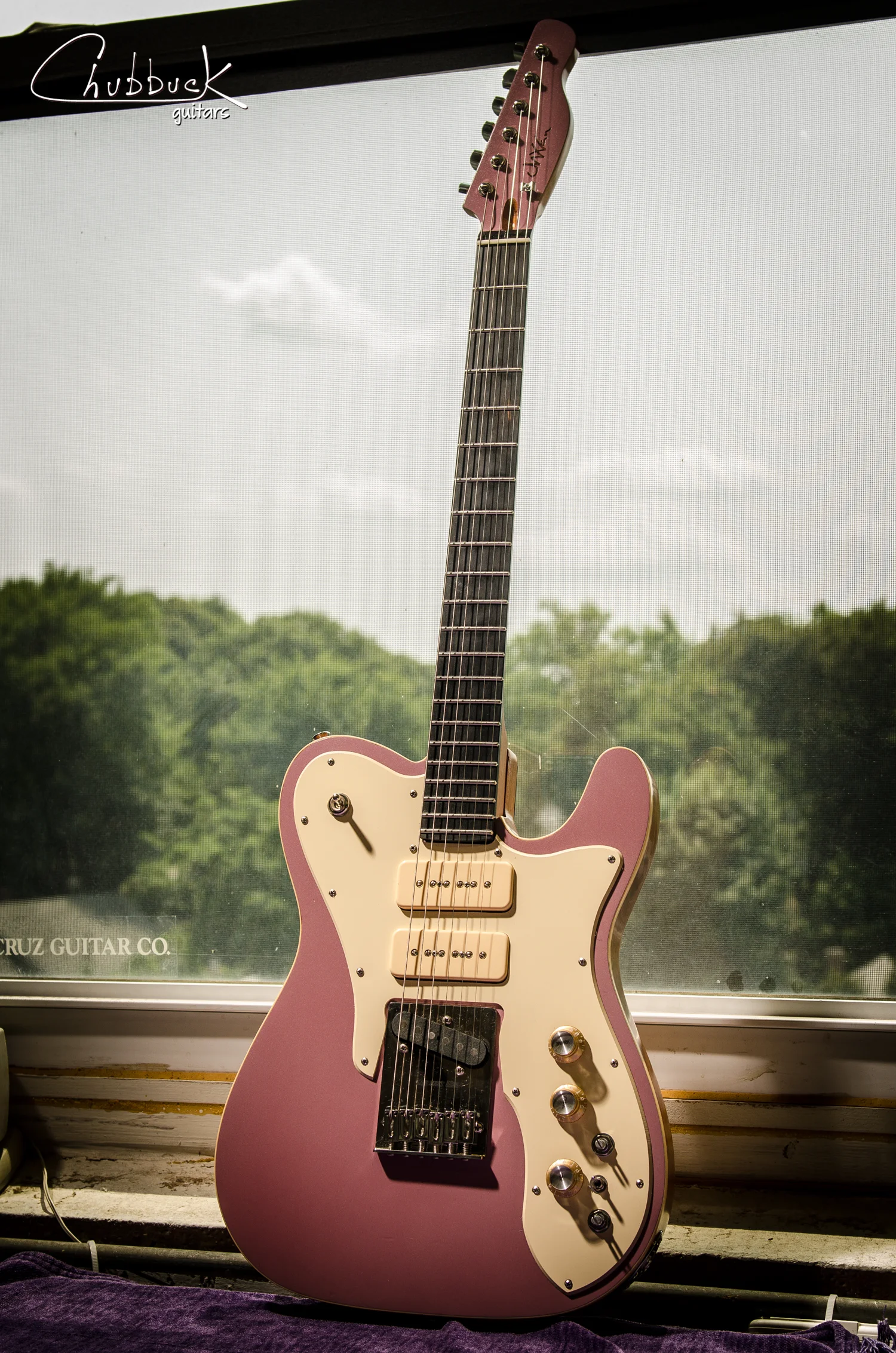

Neck carve & rewire :: 2014 JW Van Tele [9.1 lbs]
A custom tele in for a replacement 6-way "Freeway Switch" and rewire, add master volume and neck recarve. Mmmm ... P90's ...
Post-builder tinkerer :: 2014 JW Van Tele
This non-original owner custom tele has the classic signs of post-builder-tinkering under the pickguard. The "Freeway" six way toggle switch was broken and needed to be replaced. Since I was in there, I decided rewire most of the circuit to tidy things up. The player utilizes volume swells and requested a master volume be added closer to the bridge within pinky reach.
