Intonation out of whack :: 2011 Fender Pawn Shop '51 [7.6 lbs]

View fullsize

Yikes! The intonation on this Fender Pawn Shop 51 is way out of whack. In the photo above I adjusted the high e to it's proper location. Note that the high e is set roughly at the scale length (25.5"). The rest of the saddles all need to fall behind this one. The player is into jazz so no wonder his chords sounded so out of tune, even for jazz!

View fullsize

The main reason this ended up on my bench though was for a missing output jack nut.  Since this guitar was made in Japan, the threads on the jack are metric.  I could not find a metric nut in my parts cabinet so we decided to install a much more robust Switchcraft jack along with a serrated washer to help keep it tightly mounted.

View fullsize

Rough pawn shop find :: 2002 American Fender Stratocaster [7.9 lbs]

View fullsize

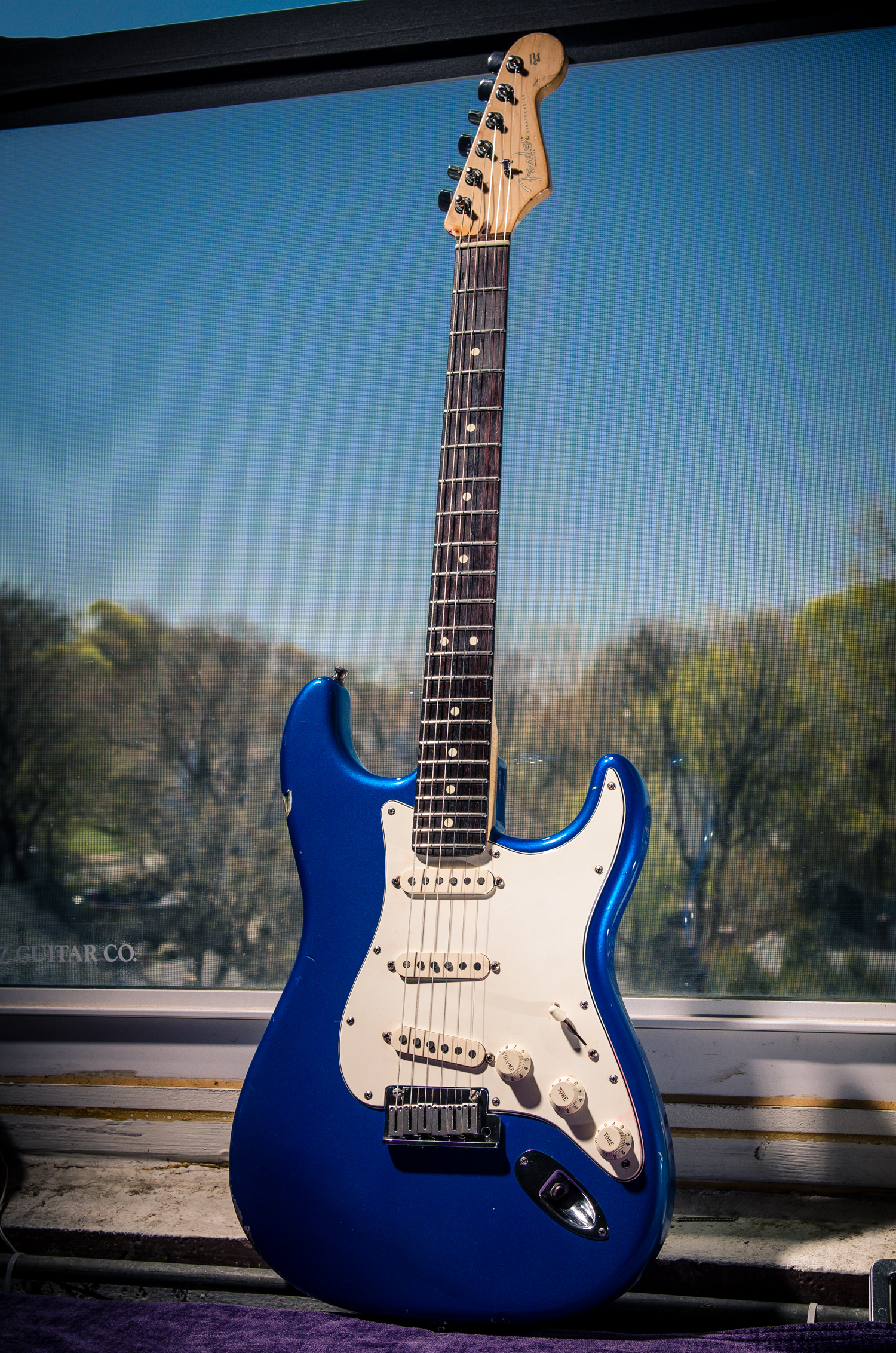

Here's the rough pawn shop Strat ready to head back out.  The major issues was that the posts holding the bridge were blown out and wrecking the action.  Once the bridge area was repaired (along with the neck pocket), I went through with the setup.  The bridge was fairly rusty, to the point I needed to use vise grips to remove the saddle height adjustment screws before replacing them with new ones.  A new output jack finished it off (check the video from the daily vlog below).

View fullsize

Setup :: 2004 Fender Squire Vintage Modified '51 [7.1 lbs]

View fullsize

Some high frets needed to be glued down along with cleaning up the sloppy graphite nut and this guy was playing good again.  Interesting guitar with a Strat body, master volume (humbucker coil tap pull) and 3-way rotary pickup selector.  No tone controls.  Balls out.
