New tone cap :: 2010 Equator Languedoc copy [5.5 lbs]

View fullsize

You may remember this one from another blog post where I scratched the shit out of the neck pickup cover ("Being a Professional Means that you Don't Make Excuses").

The hollowbody dropped by the shop recently to swap out the 0.022 mfd mica tone cap for a smaller 0.015 mfd Emerson paper in oil cap.  The player was looking to dial in the tonal sweep a little closer to his likes.  The general rule is that the higher value of the cap, the darker you can cut the tone.  Smaller values do not roll off the tone as deeply.

Gut & rewire :: Olson "Languedoc" [7.1 lbs]

View fullsize

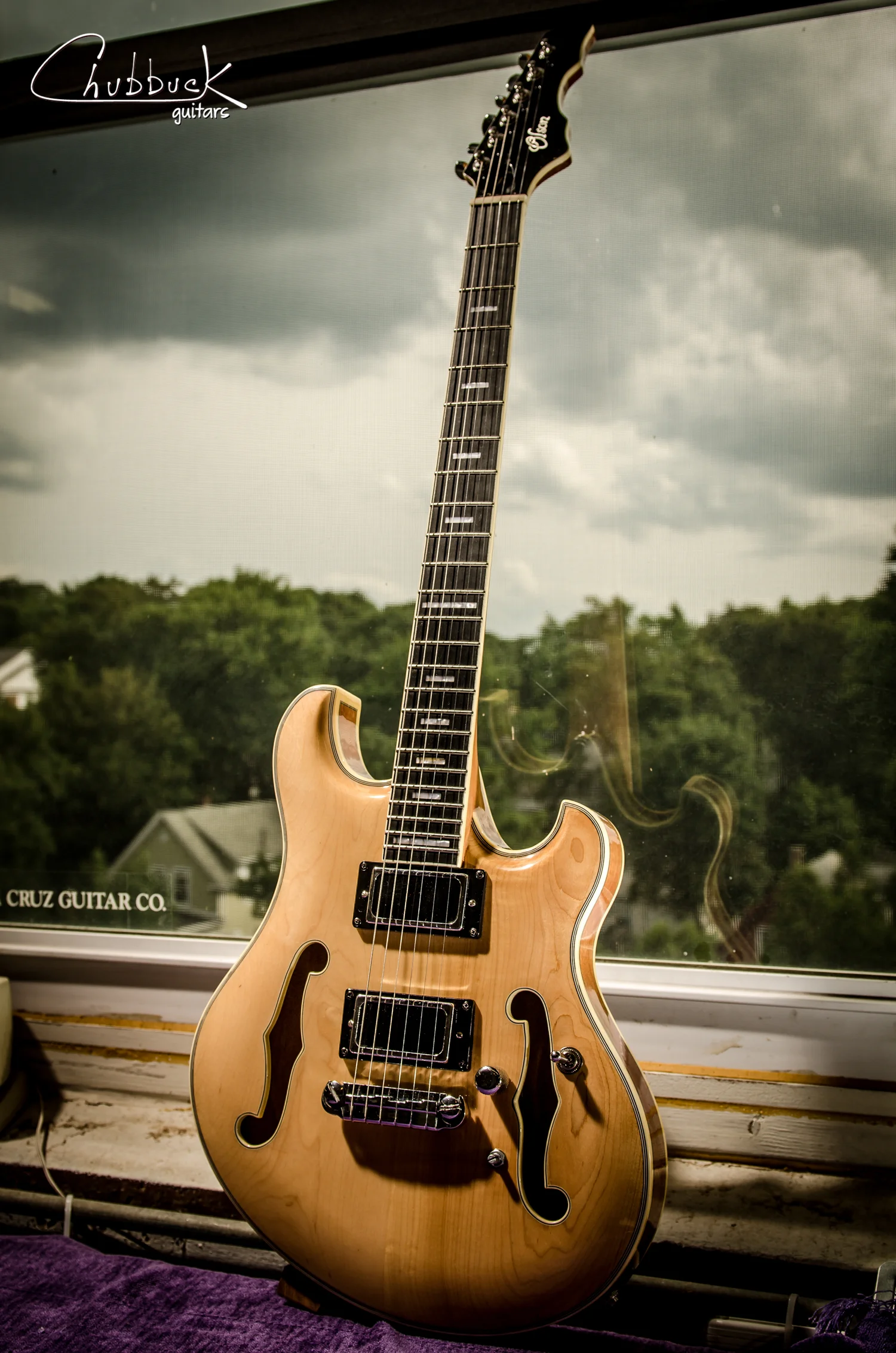

Gut & rewire :: Olson "Languedoc" [7.1 lbs]

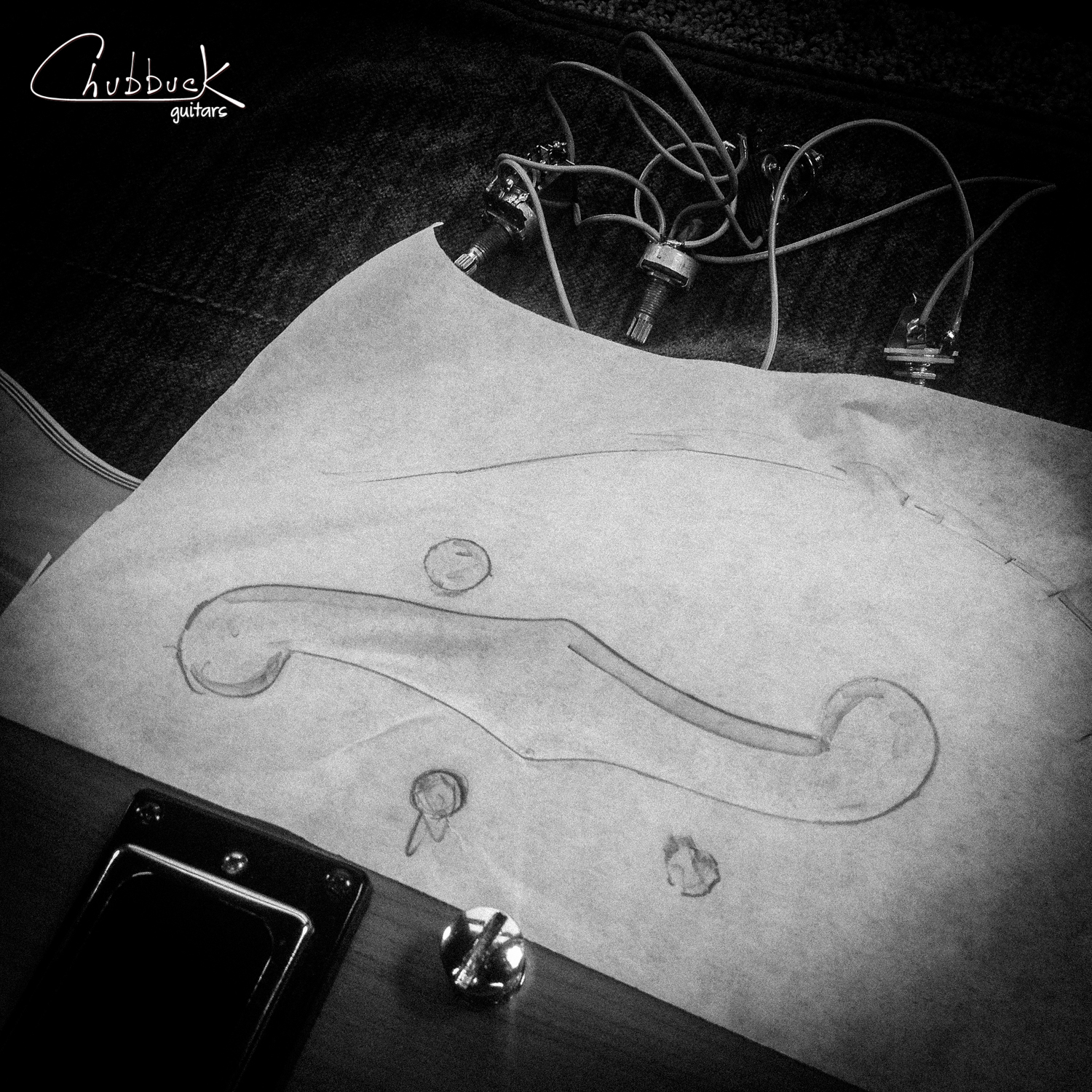

This semi hollowbody clone had some funky wiring so it was gutted and re-wired.  Below is a quick tip for laying out clean hollowbody wiring. Use low tack drafting tape to copy the layout and transfer it to a piece of card stock. Drill the appropriate holes and install the components in your template to keep all of your leads nice and clean. Bonus points for cutting out the f-hole. No one wants to see wires passing through there.

View fullsize

2010 Equator Languedoc copy [5.5 lbs] :: new pickup rings & setup

View fullsize

2010 Equator Languedoc copy [5.5 lbs] :: new pickup rings & setup

The black plastic pickup rings were swapped out for flame maple rings and the 3-way pickup switch was cleaned and sealed.  The bridge was bottomed out, so the bone split saddles were lowered in order to allow more range in the thumb wheel adjustments.

Equator Standard [Languedoc copy] :: set up and cleaned pots

Equator Standard [Languedoc copy] :: set up and cleaned pots.

A couple years ago this guitar was in for new frets, new bone nut and brass saddles.
